Bool

PreviousVariableNextComparison

Last updated 7 months ago

Boolean cast nodes

You can use a Boolean cast node to convert a Boolean value to a float, an integer, or a string. In each case you can choose how the Boolean true or false value is represented in the target type.

For example, the default outputs for the Bool To String node are "true" and "false", but you could change them to "on" and "off", or "open" and "closed", or any other pair of strings.

Inputs:

Name
Type
Description

Input

Boolean

The value to be converted.

True Value

<varies> [editable]

The value to output if the input is true.

False Value

<varies> [editable]

The value to output if the input is false.

Outputs:

Name
Type
Description

Output

<varies>

The converted value. The output depends on the chosen node, and is either a float, an integer, or a string.

Boolean logic nodes

Perform Boolean logic operations on the provided inputs. All inputs and outputs are Boolean values.

Name
Operation

Bool And

Output is true if both A and B are true.

Bool Or

Output is true if either A or B are true.

If you need a node that's equivalent to a Not logical operation, see Invert Bool.

Logic Bool Changed

Outputs true in the frame where the input value changes from true to false or from false to true.

Inputs:

Name
Type
Description

Input

Boolean

The Boolean value to monitor.

Outputs:

Name
Type
Description

Output

Boolean

True when the Input changes, but resets to false at the end of the frame.

Example

In the following example, the referenced float is incremented by one each time that the referenced Boolean changes.

Bool Constant

Outputs a true or false Boolean value. An AFX graph cannot change the value of this node.

You can open an AFX graph to change the value of this node in the Unity Editor.

Outputs:

Name
Type
Description

Output

Boolean [editable]

A true or false value.

Get Bool

Converts a reference to a Boolean component to a Boolean value.

Inputs:

Name
Type
Description

Bool Component

Bool Component

Reference to a Boolean component.

Outputs:

Name
Type
Description

Bool Out

Boolean

The true or false value of the Boolean component.

Invert Bool

Inverts a Boolean value. If the input is true, the output is false. If the input is false, the output is true.

Inputs:

Name
Type
Description

Input

Boolean

The value to be inverted.

Outputs:

Name
Type
Description

Output

Boolean

The inverted value of the Input.

Set Bool

Sets the value of a Boolean component.

Inputs:

Name
Type
Description

Enter

Flow

Flow to activate the node.

Bool Component

Boolean component

Reference to the Boolean component for which you want to set the value.

Value In

Boolean [editable]

The value that the Boolean component will be set to.

Outputs:

Name
Type
Description

Exit

Flow

Continue the activating flow.

Output

Boolean

Repeats the Value In value as an output.

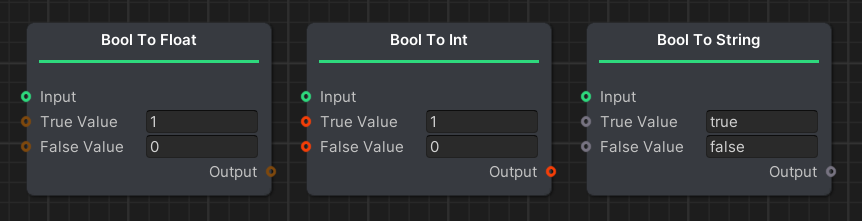

The available nodes to cast a Boolean to another data type

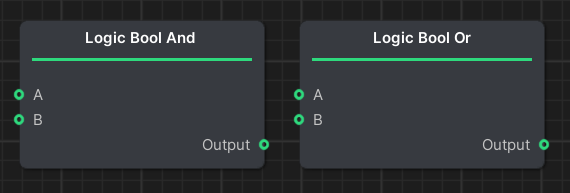

The available Boolean logic nodes
Logic Bool Changed node

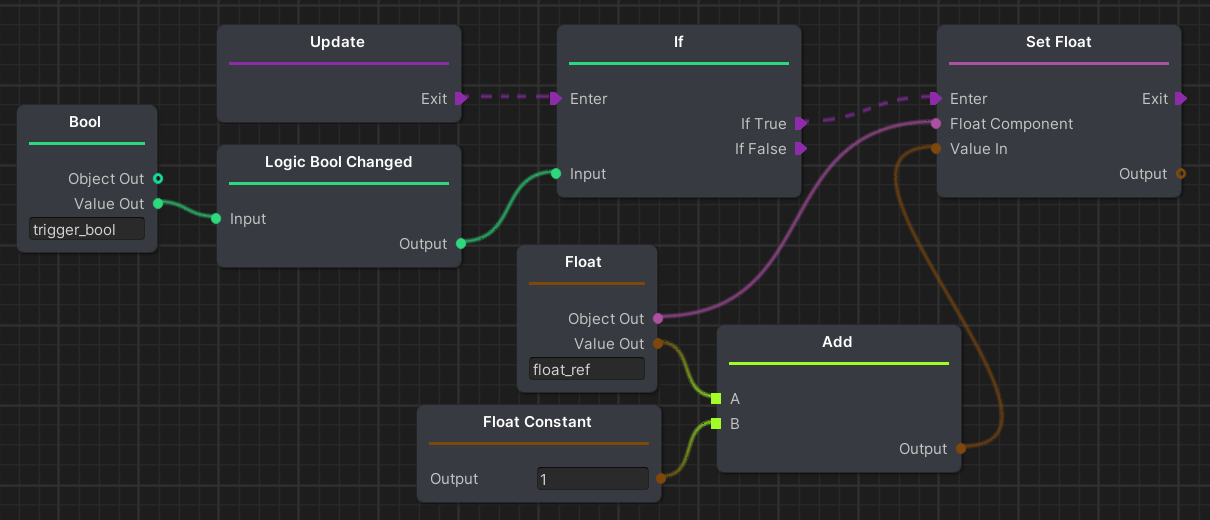

Example graph to increment a float each time that a Boolean changes
