Physics

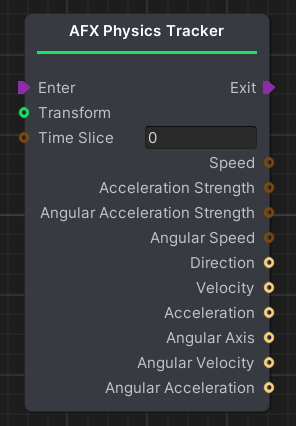

AFX Physics Tracker

Evaluates various physics-related statistics for a given transform and sampling frequency.

Inputs:

Name
Type
Description

Enter

Flow

Flow to activate the node.

Transform

Transform

Reference to a transform component to be evaluated.

Time Slice

Float [editable]

Number of seconds over which to sample data in each cycle.

Outputs:

Name
Type
Description

Exit

Flow

Continue the activating flow.

Speed

Float

The average speed at which the transform is moving.

Acceleration Strength

Float

The acceleration strength.

Angular Acceleration Strength

Float

The angular acceleration strength .

Angular Speed

Float

The average angular speed.

Direction

Vector3

Direction of movement

Velocity

Vector3

Average velocity.

Acceleration

Vector3

Average acceleration.

Angular Axis

Vector3

Axis of rotation.

Angular Velocity

Vector3

Average angular velocity.

Angular Acceleration

Vector3

Average angular acceleration.
