Drawing on whiteboards on VR headsets

Using your Drawpad

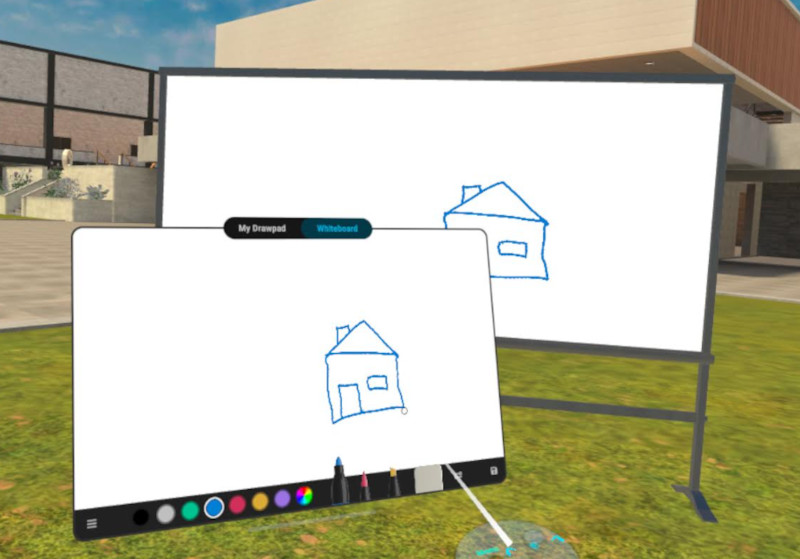

Using a Drawpad to draw on a whiteboard

We recommend that you use your Drawpad to draw on whiteboards. For more information, see:

• Opening your Drawpad

• Connecting your Drawpad to a whiteboard

• Using your Drawpad

Drawing directly onto a whiteboard

You can draw directly onto a whiteboard as though it were in your physical space. To do so, complete the following steps:

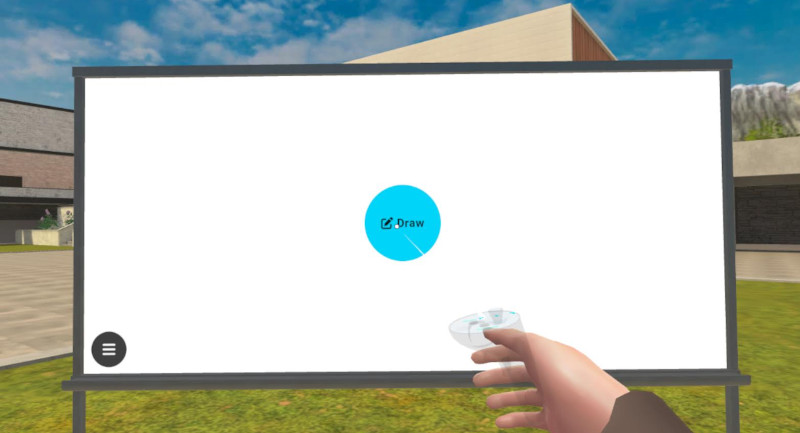

Selecting the option to draw directly onto a whiteboard

1. Move your avatar within approximately 9 feet (3 m) of the whiteboard.

2. Use the ray from your hand controller to select Draw. A tool palette appears and is connected to one of your hands. The other hand is your drawing hand.

To switch which hand is the drawing hand, select the hand icon on the tool palette.

1. To draw, move the touch cursor on your drawing hand into contact with the whiteboard, hold down the trigger button, and then move your hand. For more information about the touch cursor, see Using hand controllers to interact with your menu.

When you draw directly on a whiteboard, the tool palette includes the same tools as your Drawpad. For more information about how to use these tools, see Using your Drawpad.

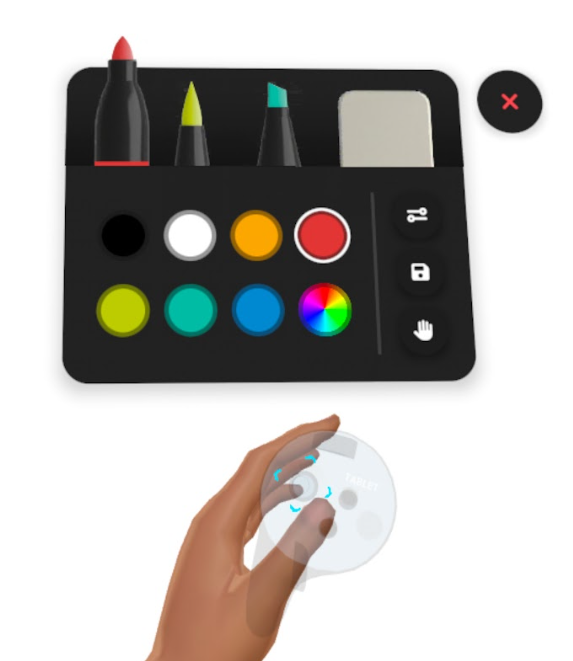

Tool palette when drawing directly onto a whiteboard.
